1000 Series

A&G Mercury Tow Tractors

1000 Series

Model 80, 100, 120 (E-Gas)
Model 80, 100, 120 (E -LP)
Model 80, 100, 120 (D-C Diesel)

All Mercury tow tractors feature a one -piece welded frame designed to protect components through a long service life, with reinforcement at high stress areas.

A&G Mercury Model 80, 100, & 120 are rugged, highly maneuverable, heavy duty gasoline, propane, or diesel powered tractors designed and constructed to move extra heavy loads efficiently and economically. They provide maximum performance at low operating cost. Compare these features:

Lighting package includes 2 headlights, 2 taillights, & 2 backup lights. Instrument pane with volt meter, hour meter, anti-restart key switch, oil & temperature gauges , light switch and if gas or diesel a fuel gauge. Other equipment would be horn, 650 C.C.A. battery, standard cushion seat, power steering and hydraulic assist brakes, parking brake, and standard P-R-N-D-L shifter. Standard paint colors are Safety Yellow and Safety Orange.

The rugged one piece frame features a massive 6” (152.4 mm) thick rear bumper and 1” (25.4 mm) thick front bumper. Fenders and steps are an integral part of the frame.

The heavy duty drive axle features inboard planetary reduction with 2.375” (60.3 mm) dia. axle shafts and multiple wet disc brakes, 4 discs per side for a total braking area of 224 sq in (1445 sq mm). The bronze discs are oil cooled for long life.

Download Specs

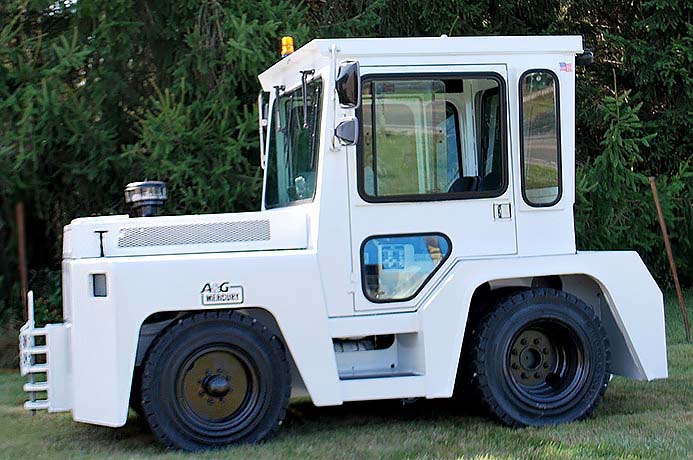

1000 series tractor
All of our Tow Tractors complies with ANSI B56.9 Standards.
Draw Bar Pull Weight without Battery
Model Pounds Newtons Pounds Kilograms
80 8,000 35,587 11,300 5,125
100 10,000 44,484 12,500 5,670
120 12,000 53,379 13,800 6,260

Drawbar pull is the ultimate start up pull on dry, freshly swept concrete, and on a level surface. If used on ramps or inclines the drawbar pull will be affected.

We provide New and Factory-Refurbished Tow Tractors & Trailers along with the parts needed to maintain them.
