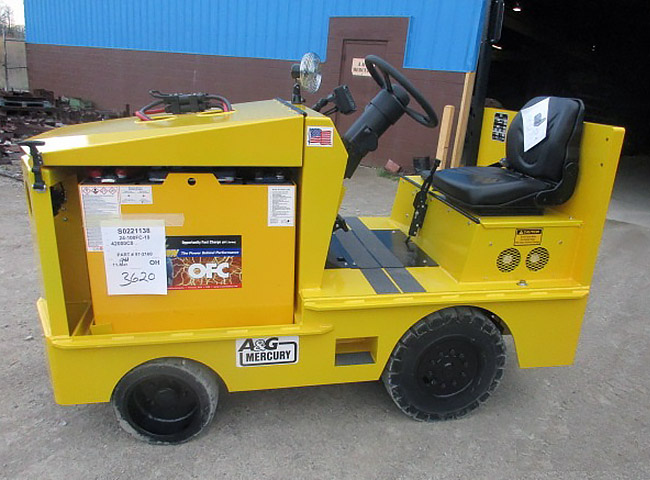

700AC Series

A&G Mercury Tow Tractors

700AC Series

Models 731AC, 741AC, 751AC;
Models 732AC, 742AC, 752AC;
Models 734AC, 744AC, 754AC

All Mercury tow tractors feature a one -piece welded frame designed to protect components through a long service life, with reinforcement at high stress areas.

This unit was designed with the same durability and trust you would expect from an A&G Mercury Tow Tractor, with the latest technology and ergonomics. It is equipped with “Standard” components for the operator’s maximum comfort and ease. Which include power steering, tilt/telescoping steering column, lower battery center of gravity, and lower step in height.

Leaf spring suspension, on both steer and drive axles, with bronze bushings is a feature unique to A&G Mercury tow tractors, which provides a smooth ride and reduces shock loads to the steering system as well as to the operator. The tough, solid steel beam Steer Axle is built to withstand long hours of service.

The Danaher Inverter is standard equipment on the Model 700AC series. The Danaher Inverter combines the reliability of high efficiency power MOSSFET control with the added flexibility of microprocessor technology to provide smooth durable and customized control. The Danaher motor inverter offers many safety and performance features resulting in direct cost savings benefits to your operation. Smart full time diagnostics, battery condition monitoring, and completely cold contactor switching are just some of features that ensure a safe truck as well as reduced maintenance cost.

Download Specs
700 series tractor
All of our Tow Tractors complies with ANSI B56.9 Standards.
Draw Bar Pull Weight without Battery
Model Pounds Newtons Volts Pounds Kilograms
731AC 732AC 734AC 3,000 13,345 36, 48, 80 3,260 1,479
741AC 742AC 744AC 4,000 17,793 36, 48, 80 3,760 1,706
751AC 752AC 754AC 5,000 22,245 36, 48, 80 4,180 1,900

Drawbar pull is the ultimate start up pull on dry, freshly swept concrete, and on a level surface. Note this unit in 80 volt can handle most ramp or incline applications, and braking will not be an issue due to regenerative breaking, but please consult the factory prior to quoting

We provide New and Factory-Refurbished Tow Tractors & Trailers along with the parts needed to maintain them.

Request quote
