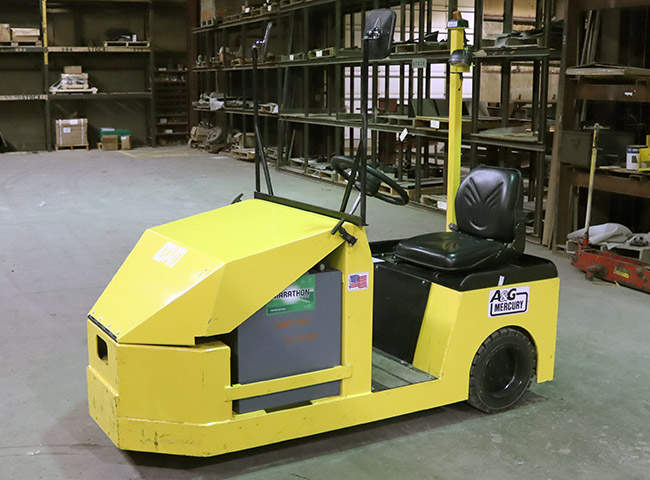

A&G Mercury Tow Tractors
All Mercury tow tractors feature a one -piece welded frame designed to protect components through a long service life, with reinforcement at high stress areas.
Leaf spring suspension on drive axle, with bronze bushings is a feature unique to A&G Mercury tow tractors. This provides a smooth ride and reduces shock loads to the drive train system.
The steering system on this model is like no other in the industry. Combined with the standard Tilt/Telescoping Steering Column and two gear boxes, the unit was designed so there is little effort to steer.
The Curtis Separately Excited Motor controller is standard equipment on the Model 300 series. The motor controller provides smooth and seamless control. Utilizing an advanced MOSSFET power section provides very high efficiency. The armature current is controlled at all times, reducing arcing and brush wear. Regenerative braking increases usable battery energy and reduces motor heating.
This model also includes as standard equipment an all-in-one Dash Display that provides the Battery Level, Hour Meter, Maintenance Indicator for service, and Programmable Maintenance monitor which allows end user to program for maintenance intervals.
Download SpecsDraw Bar Pull | Weight without Battery | ||||
---|---|---|---|---|---|
Model | Pounds | Newtons | Volts | Pounds | Kilograms |
332 | 750 | 2,224 | 24 | 1,750 | 3,850 |
333 | 750 | 3,335 | 36 | 1,750 | 3,850 |
334 | 850 | 3,780 | 48 | 1,750 | 3,850 |
Drawbar pull is the ultimate start up pull on dry, freshly swept concrete, and on a level surface. NOTE: IF UNIT IS TO BE USED ON RAMPS, PLEASE CONSULT THE FACTORY.
